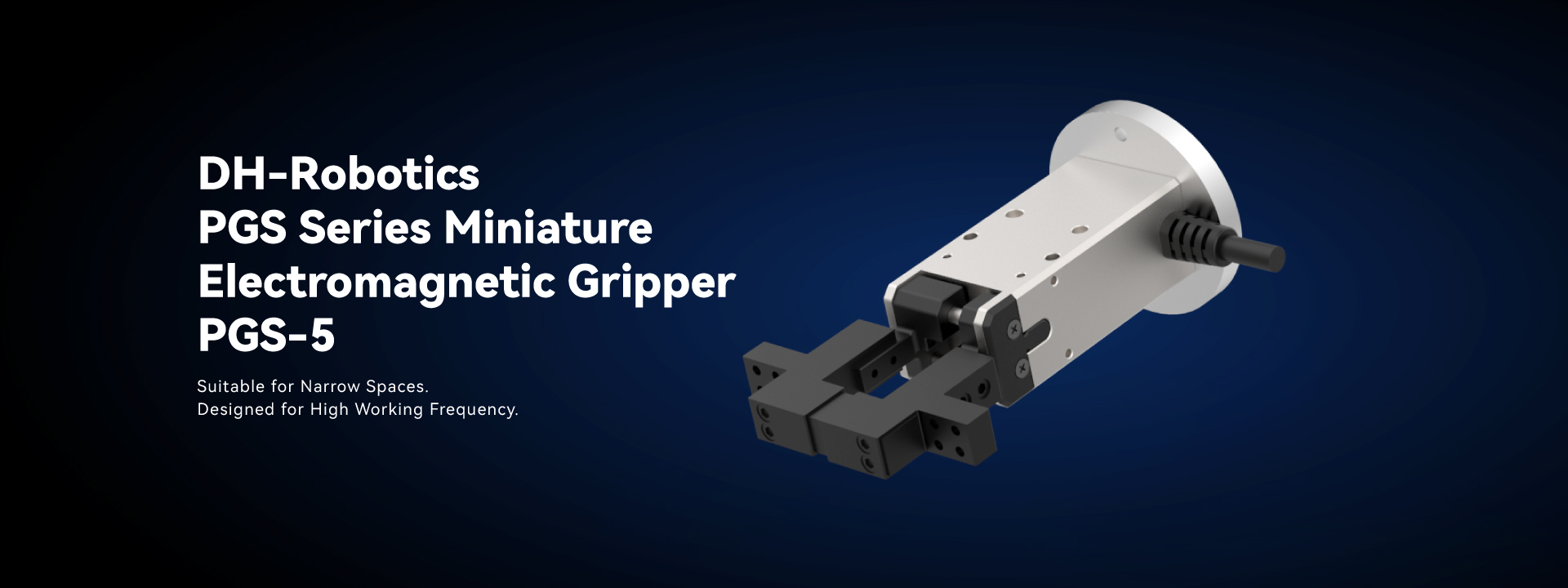

DH-Robotics PGS Series Miniature Electromagnetic Gripper PGS-5

The PGS series is a miniature electromagnetic gripper with high working frequency. Based on a split design, the PGS series could be applied in space-limited environment with the ultimate compact size and simple configuration.

Product Highlights

Compact: With the size of a battery, the gripper can be deployed in narrow spaces.

High frequency: It can complete multiple opening and closing actions within one second, meeting the demand for rapid grasping.

Simple operation: The gripper is easy to configure and uses digital I/O communication protocol, requiring only one wire for ON/OFF control.

Application

This gripper is suitable for the handling, transfer, and loading/unloading of small and medium-sized workpieces in industries such as electronics and medical equipment.

Specifications

PGS-5
Gripping Force	3.5 ~ 5 N per jaw
Stroke	4 mm
Opening/Closing Time	0.03 s
Noise	＜ 50 dB
Weight	0.2 kg
Communication Interface	I/O
Rated Voltage	24V DC ±10%
Rated Current	0.1A
Max Current	2.5A
IP Rating	IP40
