The Conveyor Belt Kit is a highly integrated modular component developed by Dobot for practical training. It supports various features includingautomatic material feeding, transportation, inspection and more.
Its high compatibility allows combined usage with a number of robots including the DOBOT MG400, CR series and Magician E6. By combining the use with Collaborative Robot Universal Training Platform and other components, users can benefit from enhanced training results as automation scenes can be easily simulated.

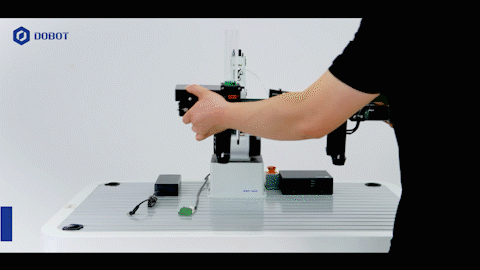

With a lightweight and highly-integrated design, it can be set up on tables, floors and training systems by just tightening screws for quick deployment.

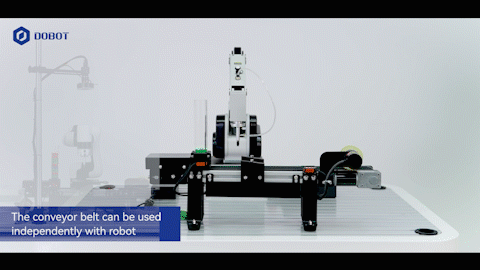

Works with the Collaborative Robot Universal Training Platform, CR series and Magician E6 and PLC modular components to simulate various scenarios, satisfying training needs.

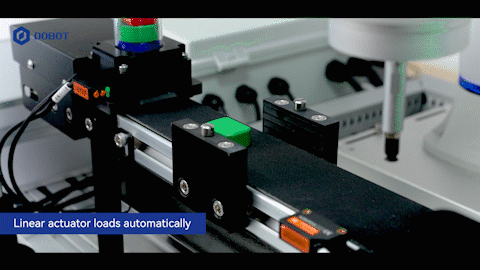

Supports various functions such as automatic material feeding, checks for item and conveyor belt travel distance with real-time feedback on the accurate item position on the conveyor belt. It can collaborate with robots for precise picking. It also has a wide range of ports to support plug-and-play for easy operation.
本社：東京都港区浜松町２丁目１-１２ VORT浜松町Ⅲ ４F
TEL：03-6381-5818
FAX：03-6381-5828
名古屋テクニカルセンター：愛知県名古屋市東区徳川1-901 サンエース徳川302
TEL：052-325-8118
| Product Name | Conveyor Belt Kit | |
| Main Body Dimensions | 583 ±8mm x 115mm x 180 ±5mm | |
| Belt Dimensions | 583 ±8mm x 55mm x 140 ±5mm | |
| Power Input | DC 24V | |
| Current | About 1A | |
| Speed | About 40mm/s | |
| Automatic Loading | Operates using linear actuator for 50 mm | |
| Material Inspection | Photoelectric sensor, inspection on the presence of material in 0 to 100 mm | |
| Incremental Encoder | Resolution | 1000P/R |
| Output Signal | ABZA/B/Z/ signal phasing | |
| Diameter | 40mm | |
| Voltage | DC 5V | |
| Product certification | CE, RoHS | |
