DOBOT Robot Vision Kit provides an essential software and hardware platform based on visual development. With the advantages of rich functions, stable performance, and convenient operation, it perfectly meets the needs of optical applications, including visual positioning, measurement, detection, and recognition. DOBOT Robot Vision Kit obtains a clear and intuitive design, making it easy to operate.
Compatible with the DOBOT Magician and DOBOT M1, the DOBOT Robot Vision Kit provides various SDK interfaces, building-block style development, and robust scalability. The vision kit supports GigEVision, USB3Vision protocol standards, and diverse cameras of different brands that can be directly connected to the kit.
With over a thousand image processing operators, high-performance algorithms, and a powerful visual analysis tool library, the DOBOT Robot Vision Kit enables users to set up fast a machine vision application system to fulfill their needs in different experimental projects and applications.
The Dobot Vision Studio supports graphical interactions, drag-and-drop operations, and visual development. The configuration setup process is simple and flexible, while the Backstage and Output interfaces can be easily customized.
Multiple teaching demos, including color recognition, bar code recognition, character recognition, measurement, calibration, alignment, image processing, etc., are provided along with the Dobot Vision Studio to help users understand the basics and operation principles of the DOBOT Robot Vision Kit clearly and intuitively.
本社：東京都港区浜松町２丁目１-１２ VORT浜松町Ⅲ ４F
TEL：03-6381-5818
FAX：03-6381-5828
名古屋テクニカルセンター：愛知県名古屋市東区徳川1-901 サンエース徳川302
TEL：052-325-8118
| HD Color Industrial Camera | |
| Sensor Size | 1/2.5"CMOS |
| Sensor Type | AR0521 |
| Effective Pixel | 5 Million |
| Hue | Color |
| Pixel Size | 2.2×2.2 um |
| Frame Rate / Resolution | 31 @2592×1944 |
| SNR | >40 dB |
| Dynamic range | >60 dB |
| Shutter Type | Curtain Exposure |
| Time of exposure | Bayer：16μs-1sec Other Format：28μs-1sec |
| Exposure control | Auto/Manual |
| Size | 29 mm × 29 mm × 30 mm |
| Data Interface | USB 3.0 |
| Data Format | Mono 8/10/12，Bayer GR 8/10/10p/12/12p，YUV422_YUYV_Packed，YUV422_Packed，RGB8 |
| Lens Mount | C-Mount |
| Six Megapixel 12mm Fixed Focus Lens | ||
| Focus | 12 mm | |
| Maximum Image Size | 1/1.8＂(φ9 mm) | |
| Aperture | F2.8 - F16 | |
| Control | Aperture | Manual |
| Focus Point | Manual | |
| Visual Angle | D | 41.2° |
| H | 1/1.8＂ 34.4° | |
| V | 23.4° | |
| Optical Distortion | -0.38% | |
| Flange Back Focus | >17.526 mm | |
| Recent Shooting Distance | 0.06 m | |
| Mount | C-Mount | |
| Filter Thread | M27×0.5 | |
| Size | φ29×35.36 mm | |
| White auxiliary light source | |
| Luminous color | White |
| LED number | 48 LED |
| Illumination | 40000 lux |
| Wavelength | 455 – 457.5 nm |
| Operating distance | 35 – 110 mm |
| Size specification | Internal Diameter: 40mm, External Diameter: 70mm, Height: 25mm |
| Outer Diameter of Lamp Barrel | Max Φ39 mm |
| Weight | 0.48 KG |

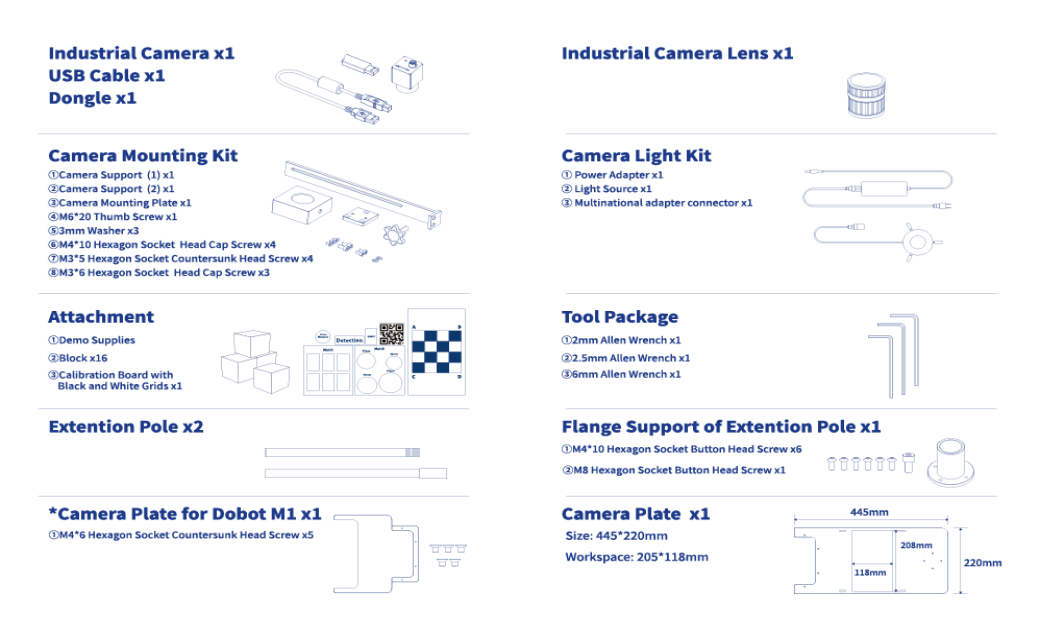

| Shipping List |
 |
