An operating range of one additional meter opens up extra opportunities for extensive scaling. With the sliding rail kit, the working space of DOBOT Magician can be fully extended to enable it to perform large-scale tasks, such as long-distance picking and placing, a more extensive range of writing, drawing, or laser engraving.
The high-precision industrial linear rail ensures the robot runs very smoothly and coherently.

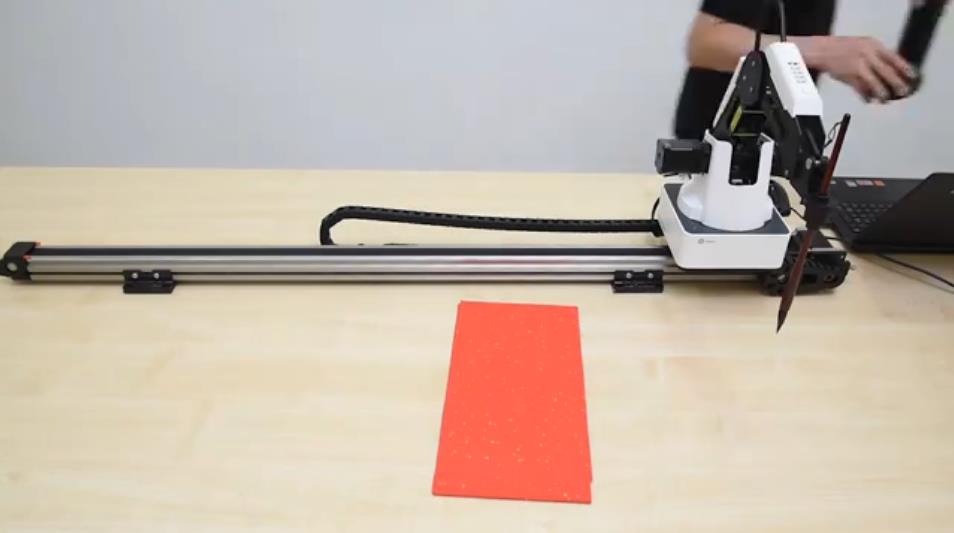

The accurate operation of the sliding rail provides an innovative learning approach for scaling rich features and multiple applications.

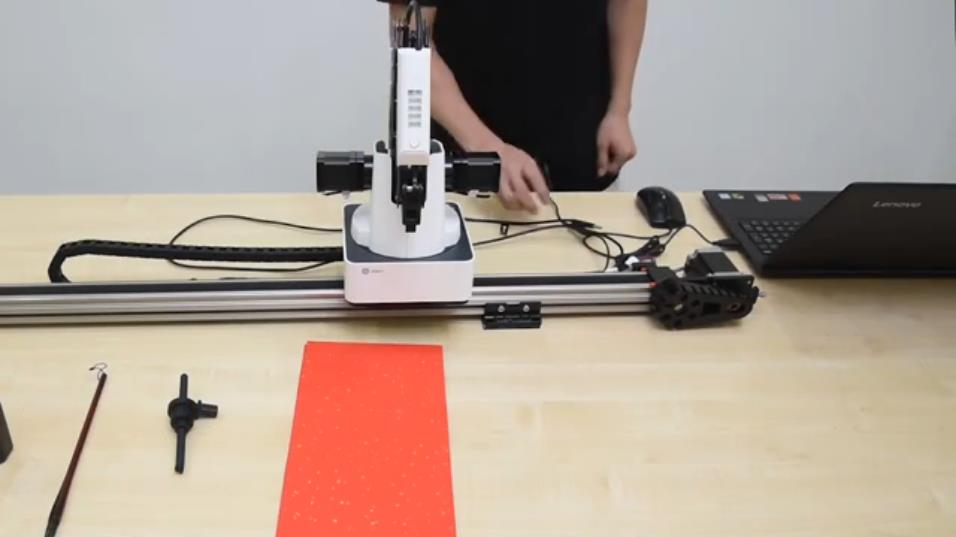

The tool kit contains five different L-shaped screwdrivers, including 1.5 mm, 2 mm, 2.5 mm, 3 mm, and 4 mm. A complete set of hex screwdrivers makes it simple and easy to install.
With a drag-chain cable carrier containing and protecting the cable, you can have a smooth user experience while all the wires are in good order.
本社：東京都港区浜松町２丁目１-１２ VORT浜松町Ⅲ ４F
TEL：03-6381-5818
FAX：03-6381-5828
名古屋テクニカルセンター：愛知県名古屋市東区徳川1-901 サンエース徳川302
TEL：052-325-8118
| Specifications | |
| Payload | 5 kg |
| Effective Travel Distance | 1000 mm |
| Maximum Speed | 150 mm/s |
| Maximum Acceleration | 150 mm/s² |
| Repeat positioning accuracy | 0.01 mm |
| Absolute positioning accuracy | 0.25 mm |
| Net Weight | 4.7 KG |
| Weight (including packing) | 7.23 KG |
| Dimension(Lenth × Width × Height) | 1320 mm × 120 mm × 55 mm |
| Shipping List |
 |
| The package include:Sliding Rall, Tool Kit, Wire Set, Attachment and Assembly instructions. We don't cover the customs tax |
